175 Bread Wrapper

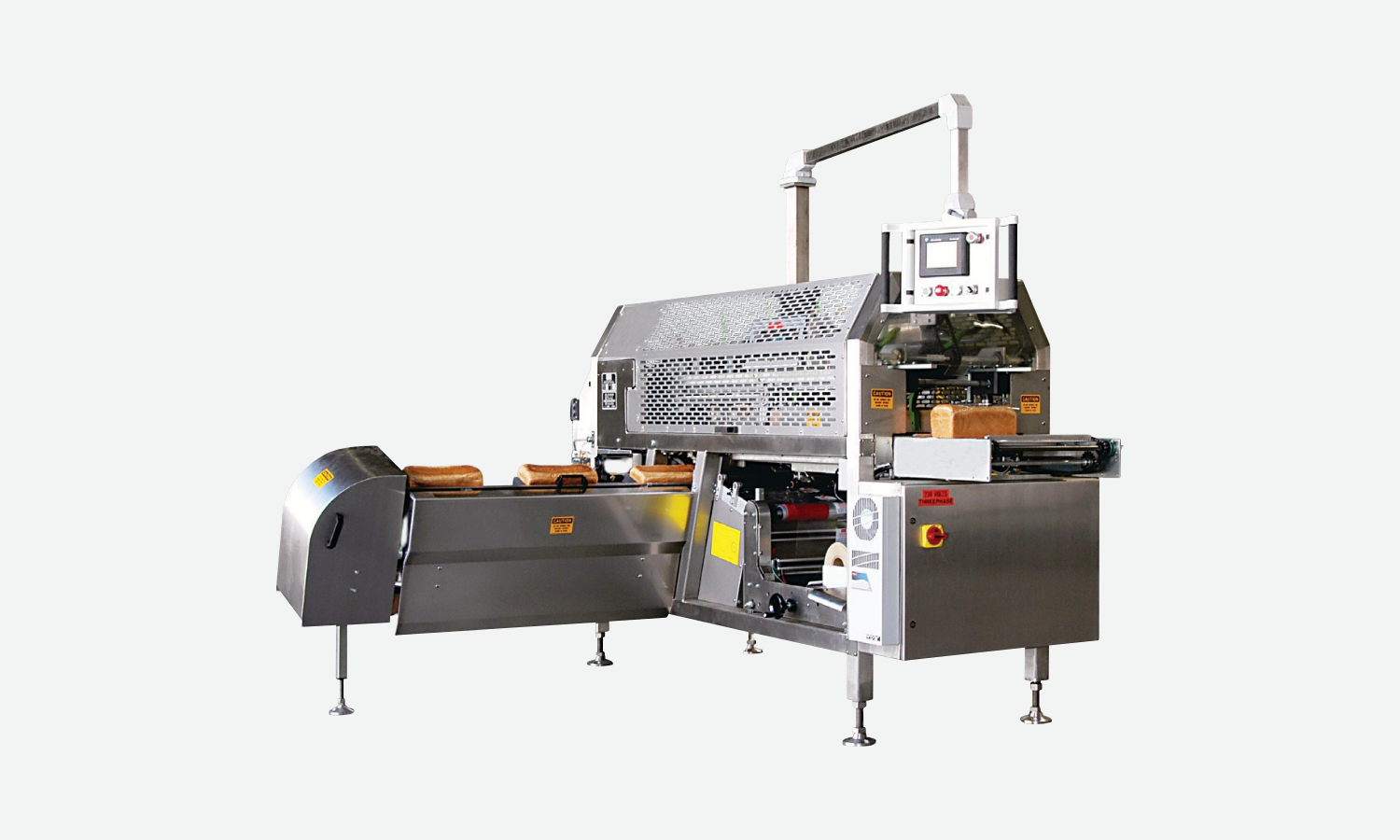

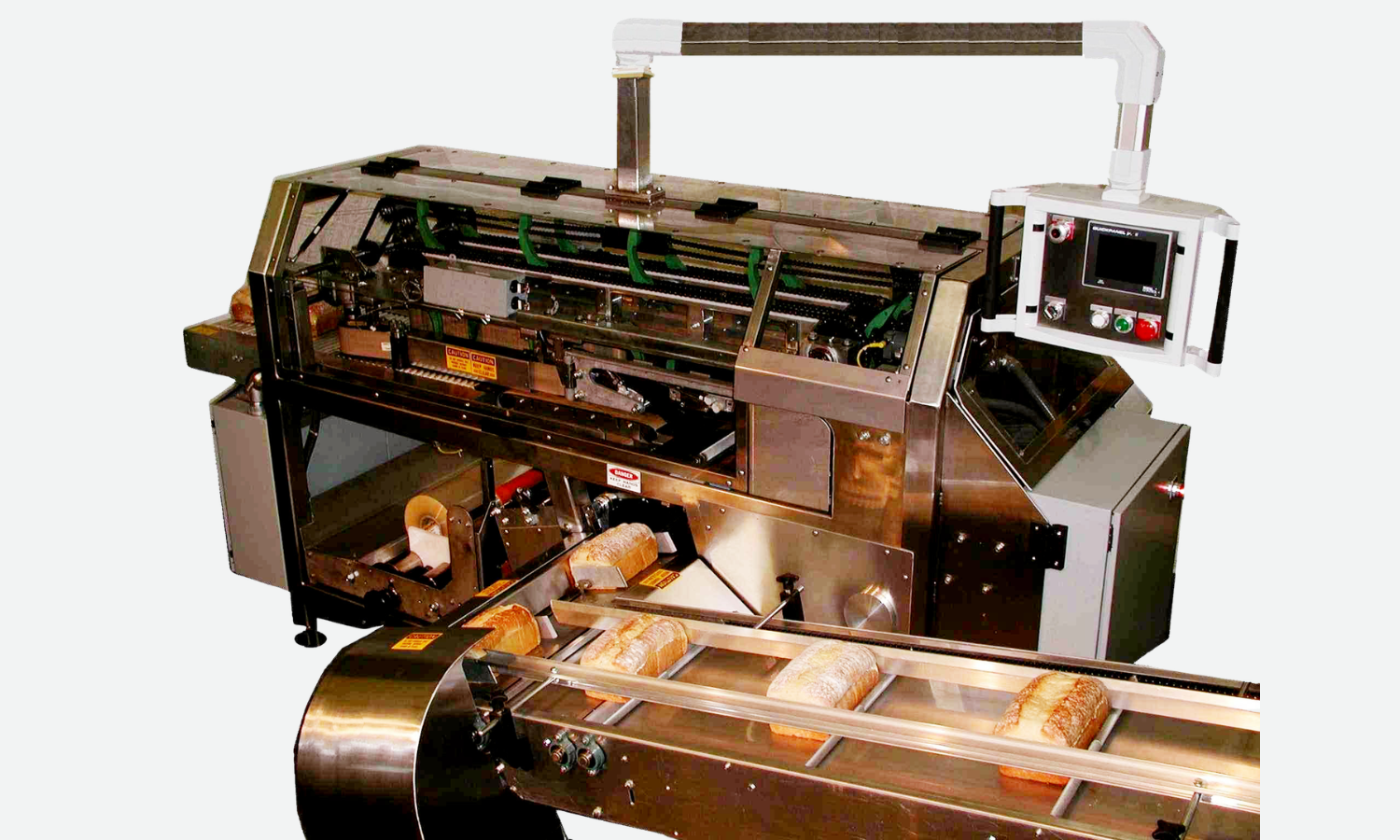

The UBE Model 175 is a servo-driven bread wrapper designed for reliable, high-speed commercial bakery production. Modern servo controls provide precise, repeatable operation while stainless steel construction, simplified mechanical design, and improved product and film handling help reduce maintenance and improve sanitation.
Why it is specified
- Servo-driven operation for precise, repeatable machine control
- Production speeds up to 65 loaves per minute
- Servo-controlled width adjustment for simplified product changeovers
- Traction vacuum film suction for reliable film handling
- Improved top transfer design for controlled product handling
- Tubular stainless steel frame with paint-free construction
- Maintenance-free pusher slide and no-lube non-metallic bushings
- Available with right- or left-hand infeeds
- Optional wrapped bread bypass for flexible line configurations
Video
Gallery
Specifications
| Machine Details | Standard Configuration |
|---|---|
| Production Speed | Up to 65 loaves per minute |
| Minimum Product Size | 3" W × 3" H × 6" L (76.2 × 76.2 × 152.4 mm) |
| Maximum Product Size | 8" W × 5-3/4" H × 16" L (203 × 146 × 406 mm) |
| Electrical | 208/230 V, 60 A, 3 Phase, 50/60 Hz — or — 480 V, 40 A |
| Air Requirements | 5 CFM @ 80 PSI, minimum 3/8" air hose |
Specifications and production speeds may vary based on product characteristics, wrapping material, product dimensions, and application requirements. Contact UBE to confirm performance and configuration for your specific product.
How it works
Servo-Driven Wrapping
Servo control of the main drive, paper drive, pump roller, width adjustment, and crossfeed provides precise and repeatable machine operation.
Automatic Width Adjustment
Servo-driven width adjustment simplifies setup and provides repeatable positioning for different product sizes.
Film Handling
Traction vacuum film suction and servo-driven paper handling provide controlled film movement through the wrapping process.
Built for Production
Tubular stainless steel construction, no-lube bushings, and a maintenance-free pusher slide provide a durable design built around sanitation and maintainability.
Next step
Specify the 175 Bread Wrapper for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
Related
Often specified alongside

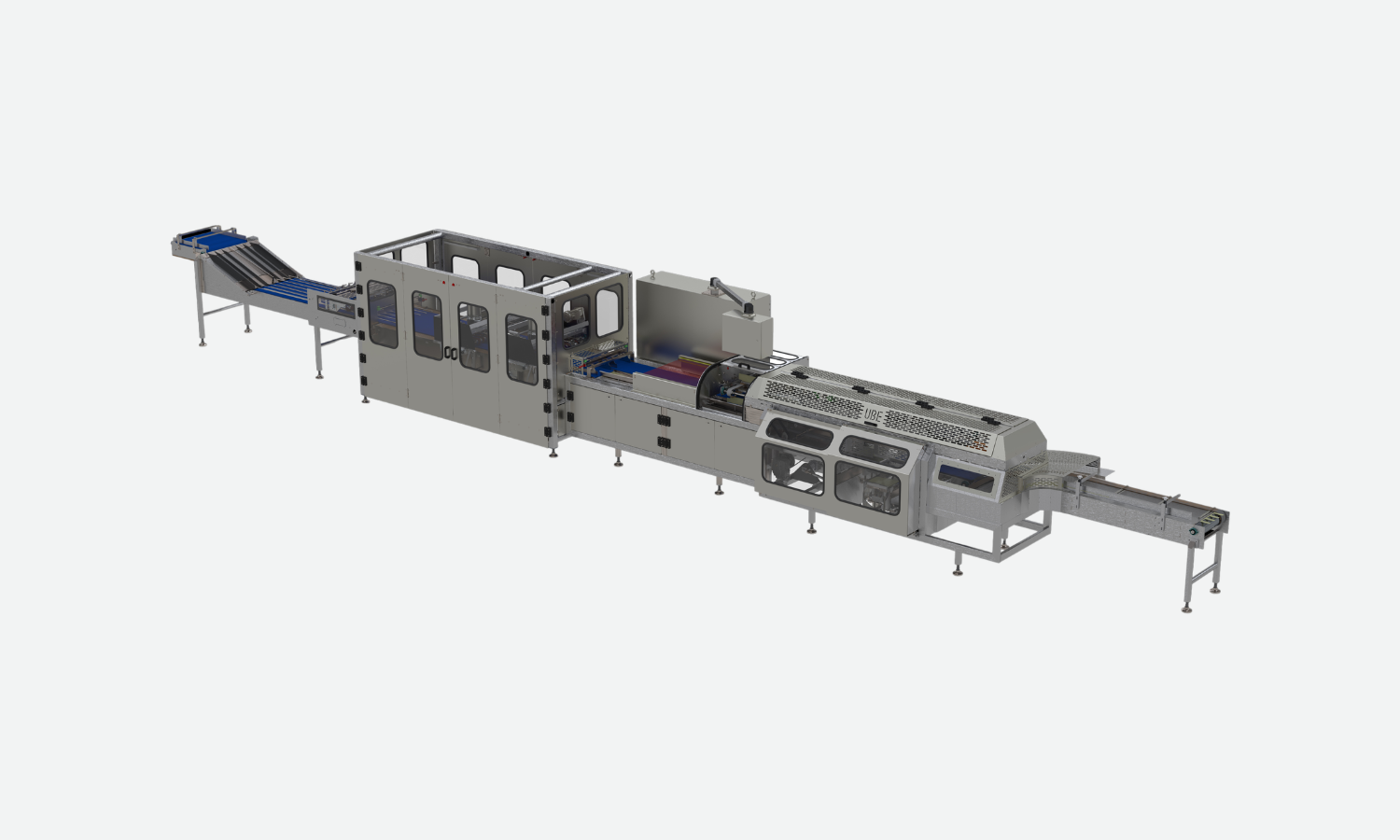

91ALS Autoload Slicing & Packaging System
