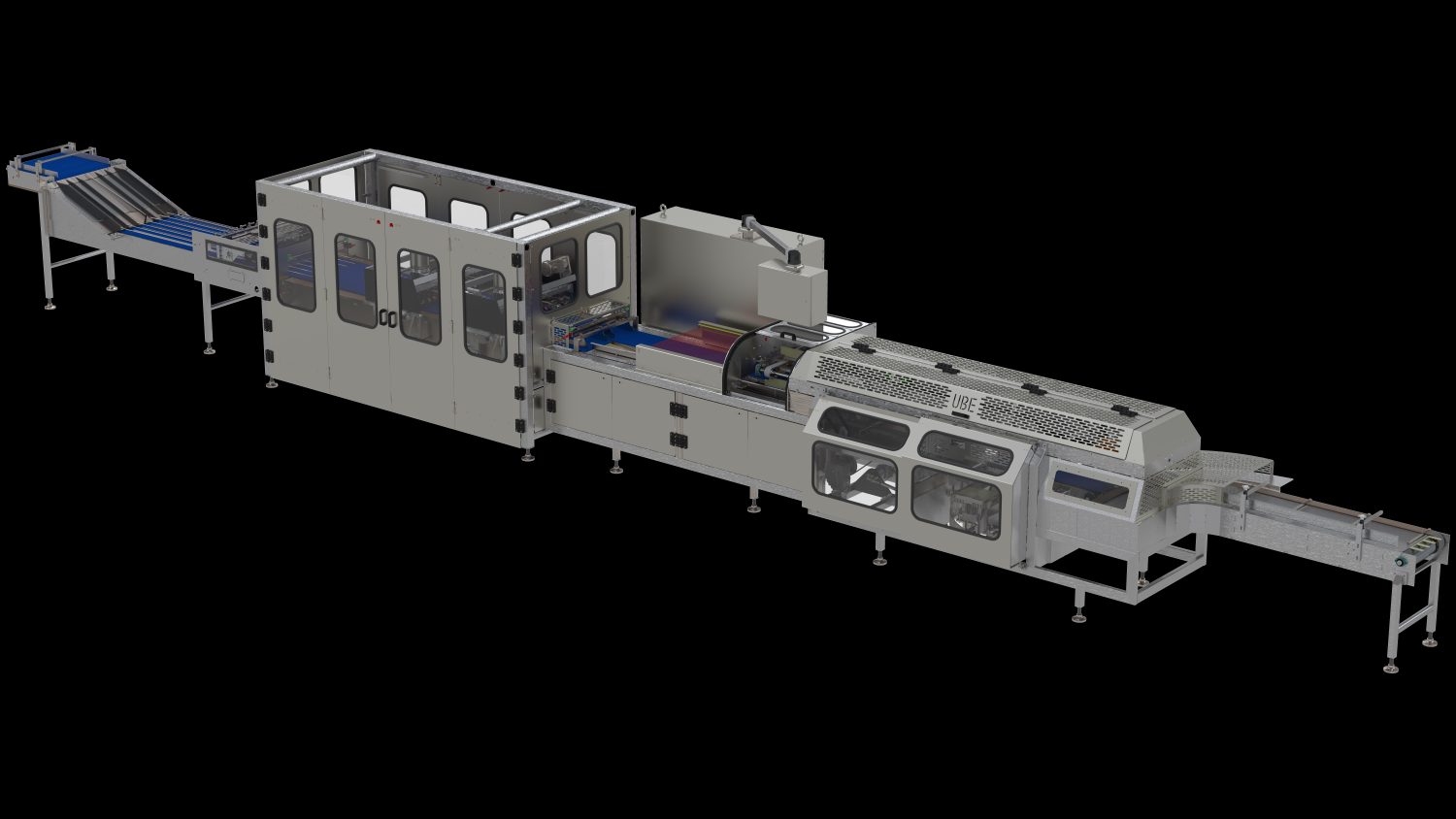

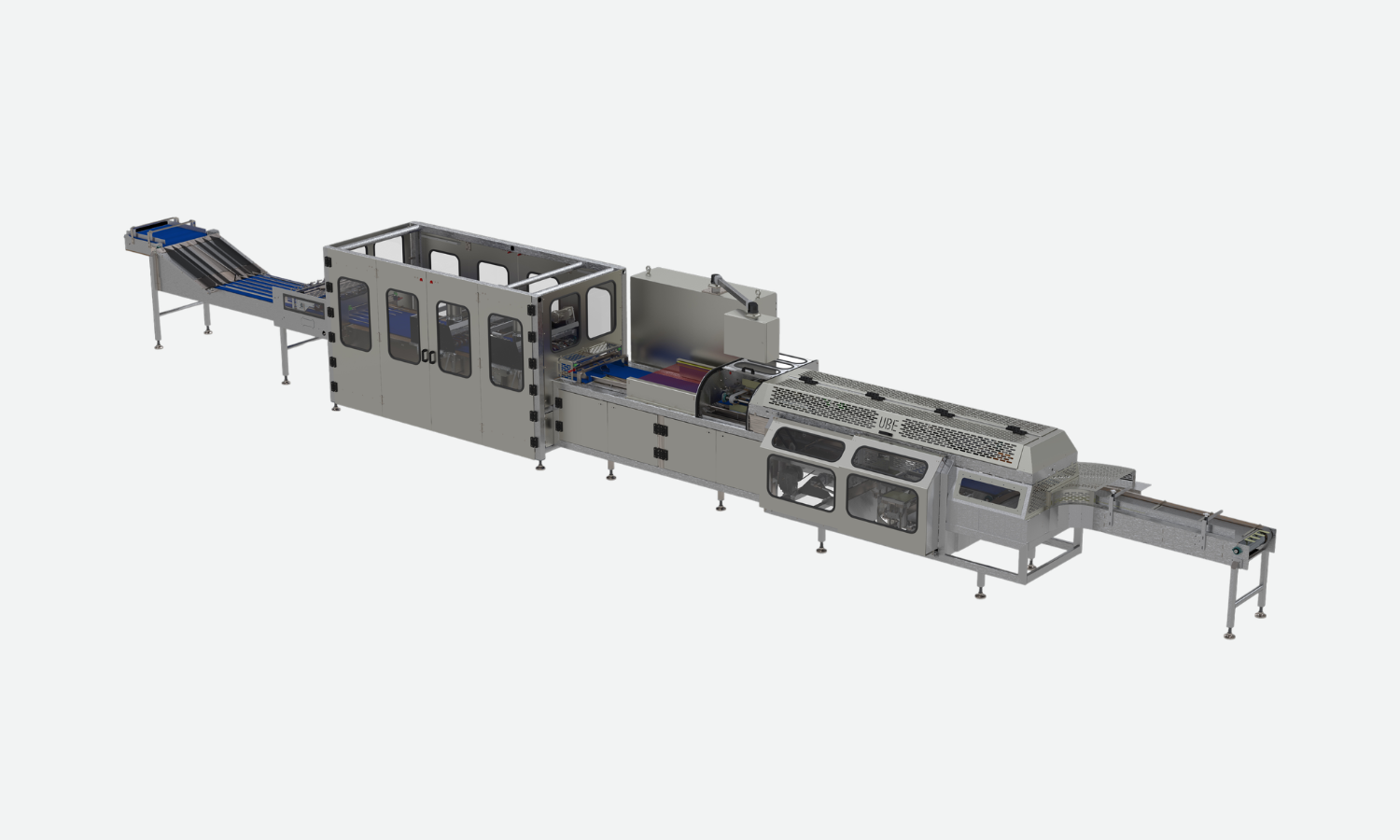

91ALS Autoload Slicing & Packaging System
The UBE Model 91AL Automatic Loader is the latest generation of UBE's proven automatic bread loading systems, succeeding the 90AL and 1216AL machines built by UBE for many years. The 91AL combines that proven loading concept with modern controls, servo-driven automation, improved product handling, and an updated sanitary design for today's high-speed bakery production lines.
Why it is specified
- Automates slicing, stacking, transfer, and bagging in one integrated system
- Production speeds from 20 to 70 products per minute depending on application
- Servo-driven product handling provides precise, repeatable motion
- Recipe-controlled operation simplifies changeovers between products
- Automatic four-position rotary bag table supports continuous production
- Quick-change infeed components accommodate a wide range of bakery products
- Allen-Bradley controls provide machine diagnostics, fault history, and operator control
- Sanitary stainless steel construction designed for industrial bakery environments
Runs for
Specifications
| Machine Details | Standard Configuration |
|---|---|
| Production Speed | 20–70 products per minute, depending on application |
| Electrical | 208/230/380/460 V, 3 Phase, 50/60 Hz |
| Air Requirements | 8 CFM at 90 PSI, dry filtered |
| Safety | Category 3 safety compliant |
Specifications and production speeds are subject to change and may vary based on product characteristics, bag size, closures, toppings, and other application requirements. Contact UBE to confirm performance for your specific product.
How it works
Controlled Product Infeed
Products enter through a metering conveyor where the brake, gate, and lane sensors control product flow into the slicing system. Power-adjusted guide rails and quick-change infeed components allow the system to accommodate different bakery products.
Integrated Slicing & Stacking
The servo-driven slicer section is designed to accommodate two slicer heads. After slicing, products transfer directly into the servo-driven stacker, where recipe-controlled motion creates the required product configuration for packaging.
Automatic Bagging
A servo-driven four-position rotary bag table presents bags to the product while the bagger and discharge crossfeed complete the packaging cycle. Allen-Bradley touchscreen controls provide recipe settings, diagnostics, fault history, and centralized machine operation.
High-Speed Product Transfer
A retracting top transfer and servo-driven triple-motion tucker table move the stacked product into the bagging section with controlled, repeatable motion designed for high-speed production.
Next step
Specify the 91ALS Autoload Slicing & Packaging System for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
