4000-WPS Wide Product Stacker
The UBE Model 4000-WPS is a wide product indexing and stacking system designed for large bakery products that require controlled alignment, grouping, and stacking. A 40-inch-wide indexing conveyor and servo-driven stacker provide precise product handling, while recipe-based controls allow the system to be configured for different production requirements.
Why it is specified
- Designed for aligning, grouping, indexing, and stacking wide bakery products
- 40-inch-wide product handling system
- Handles products approximately 15 to 17 inches wide
- Flighted infeed designed to accommodate products up to 24 inches
- Servo-driven stacker with recipe-controlled cam profiles
- Servo-driven main infeed with integrated brake and encoder
- Recipe-controlled product and machine settings
- 40-inch-wide Intralox indexing conveyor
- Modular plastic stacker conveyor
- Allen-Bradley Compact GuardLogix safety controller
- Allen-Bradley Kinetix 5500 servo drives and PowerFlex 525 drives
- PanelView Plus 7 color touchscreen
- Category 3 RFID door safety system
- Stainless steel sanitary frame
Specifications
| Machine Details | Standard Configuration |
|---|---|
| Production Speed | Application dependent; original configuration designed for 25 sheets per minute |
| Product Width | 15–17 in |
| Maximum Product Length | Up to 24 in |
| Electrical | 460 V, 60 Hz, 3 Phase |
Production speed and product capacity vary based on product dimensions, stacking pattern, product characteristics, and line configuration. Contact UBE to confirm performance and specifications for your application.
How it works
Wide Product Handling
The 4000-WPS uses a 40-inch-wide indexing and stacking system designed for controlled handling of large bakery products. The original configuration accommodates products approximately 15 to 17 inches wide and products up to 24 inches long.
Servo-Driven Stacking
A servo-driven stacker uses recipe-controlled cam profiles to provide repeatable stacking motion. The servo-driven infeed incorporates an integrated brake and encoder for precise product control.
Recipe-Based Controls
Product settings and machine timing can be stored through the recipe system for repeatable setup and changeovers. The touchscreen provides machine diagnostics, fault information, and alarm history.
Modern Allen-Bradley Controls
The system utilizes an Allen-Bradley Compact GuardLogix safety controller, Kinetix 5500 servo drives, PowerFlex 525 variable-frequency drives, and RFID safety switches for integrated machine control and safety.
Next step
Specify the 4000-WPS Wide Product Stacker for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
Related
Often specified alongside

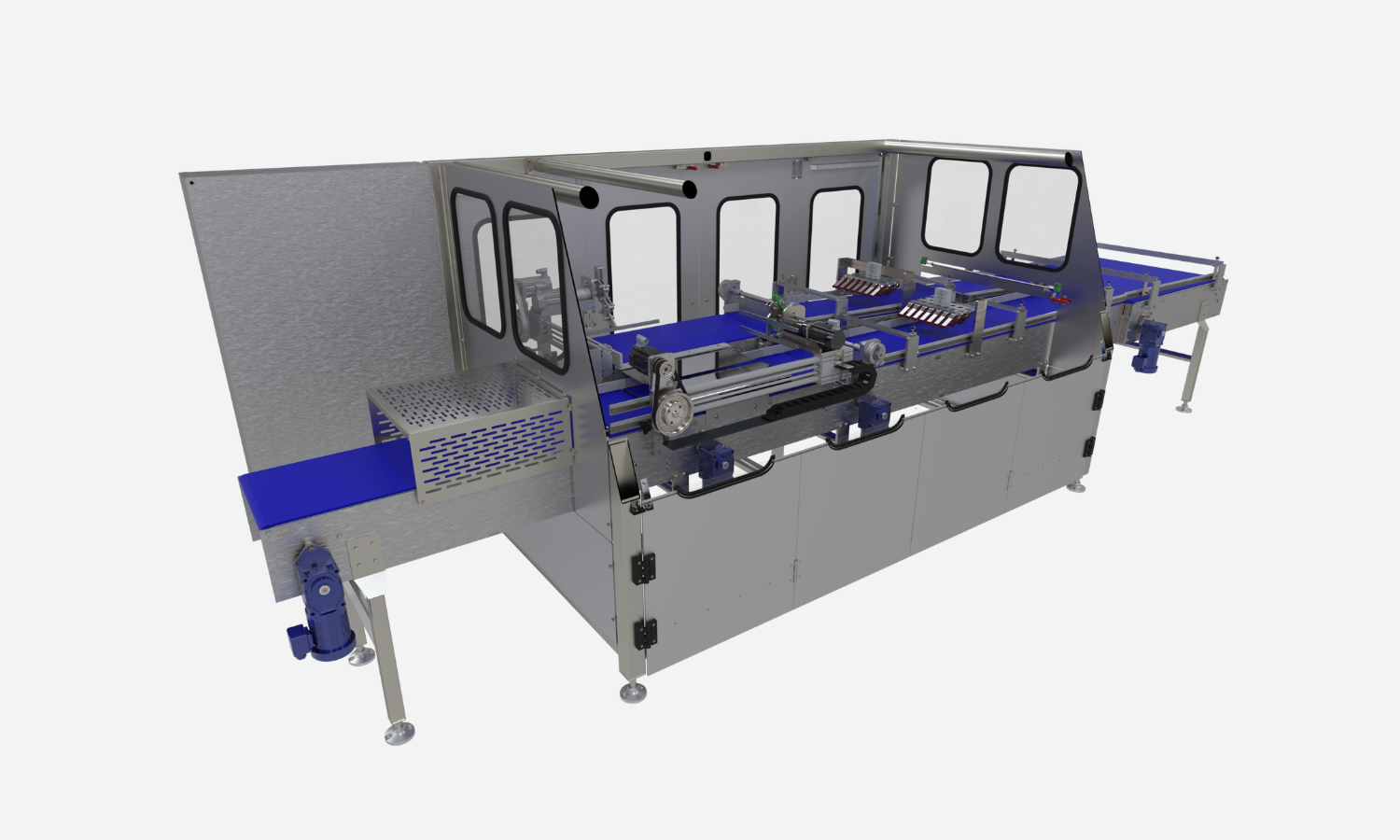

8400 Automatic Tray Stacker
A heavy-duty automatic stacking system for plastic bakery trays. The UBE 8400 uses precision servo-controlled motion to build consistent tray stacks at speeds up to 20 trays per minute, with automatic tray size adjustment and stack verification for flexible, reliable production.
Specifications →

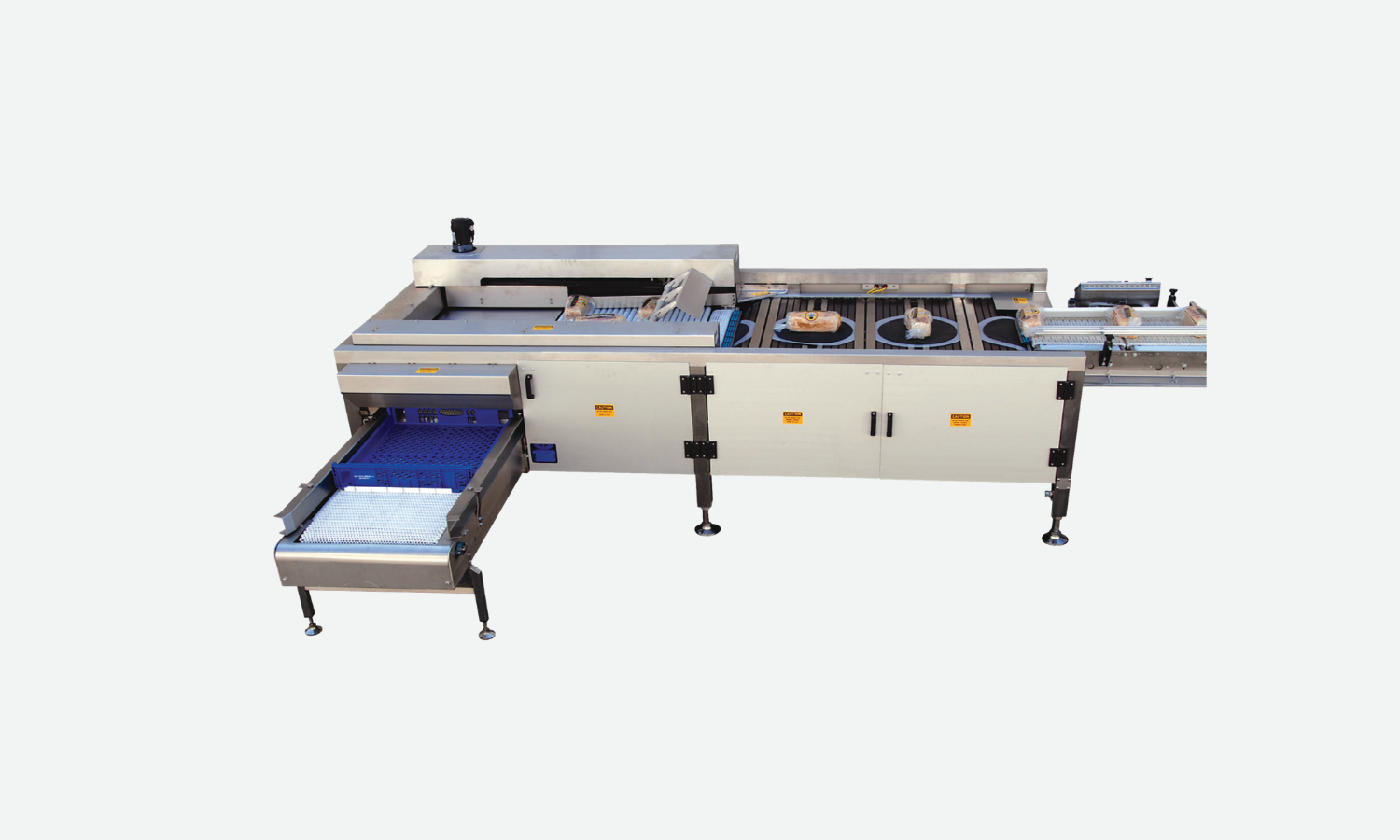

8100 Pattern Former & Tray Loader
The UBE Model 8100 is an automated pattern forming and tray loading system designed for high-speed bakery production. The system automatically arranges products into the selected pattern and loads standard plastic trays at speeds up to 100 loaves per minute. Servo-driven automation and flexible tray handling options allow the 8100 to be configured around a wide range of production line requirements.
Specifications →

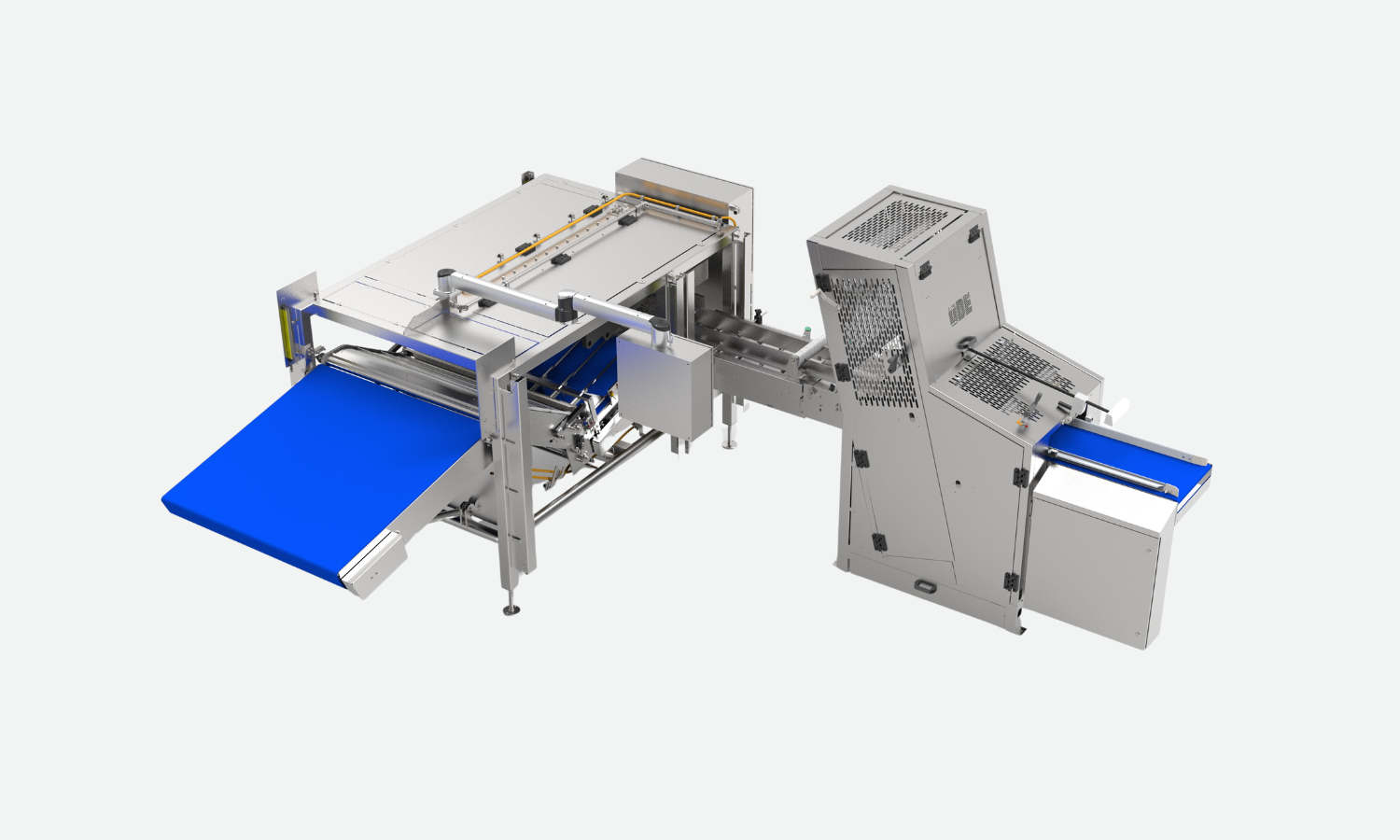

6500 Bread Slice Singulator
