Baggers
6700 Flatbread & Tortilla Bagger

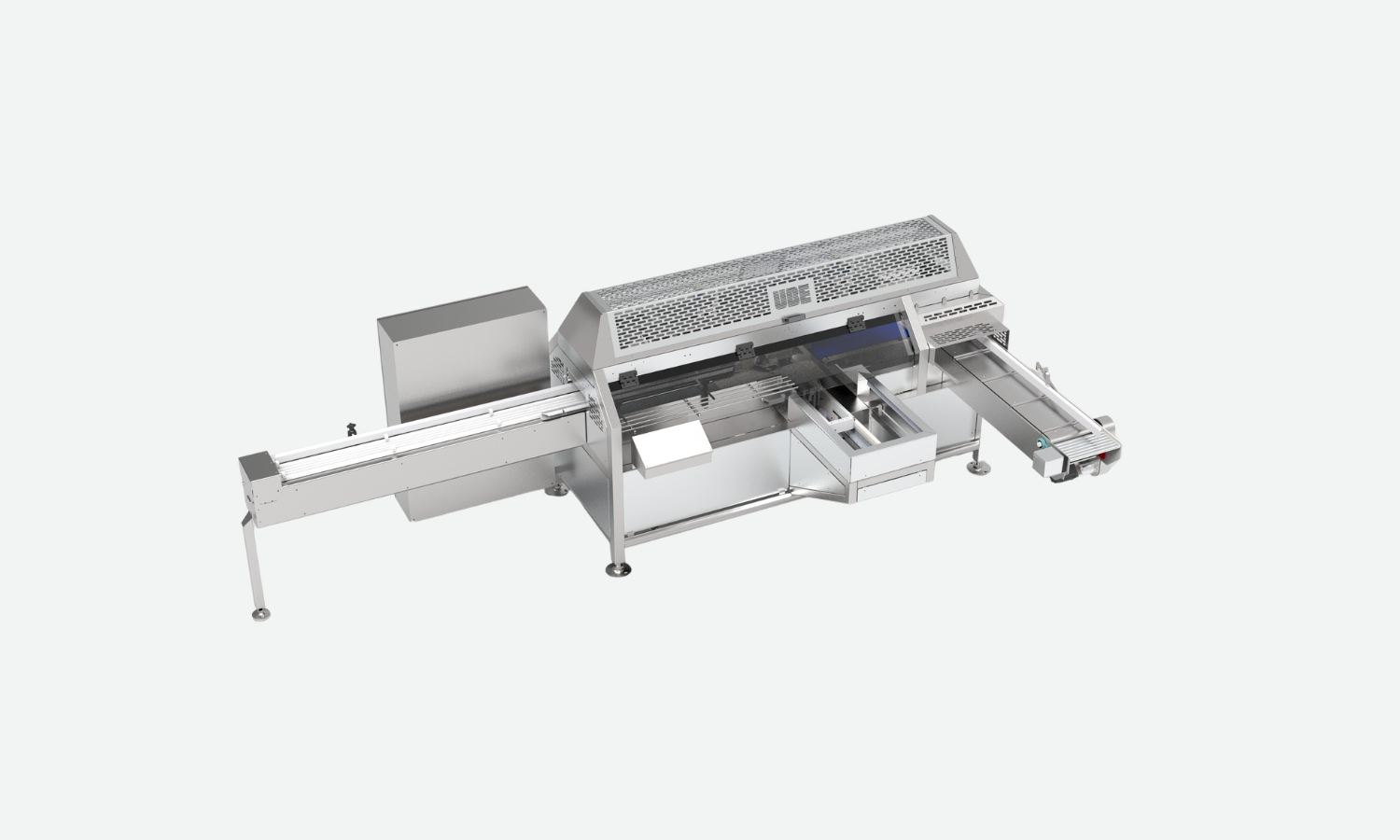

A servo-driven packaging system designed specifically for tortillas, flatbreads, and stacked bakery products. The UBE 6700 combines controlled product indexing, precise bag loading, and automatic bag changing to provide reliable packaging at speeds up to 60 packages per minute.
Why it is specified
- Purpose-built packaging solution for tortillas and flatbread
- Production speeds from 20 to 60 packages per minute
- Three-directional bag scoop provides precise product loading
- Automatic dual magazine bag changer supports continuous production
- Controlled product indexing provides consistent bagging
- Recipe-based servo controls simplify product changeovers
- Integrated heater helps manage moisture on tortilla products

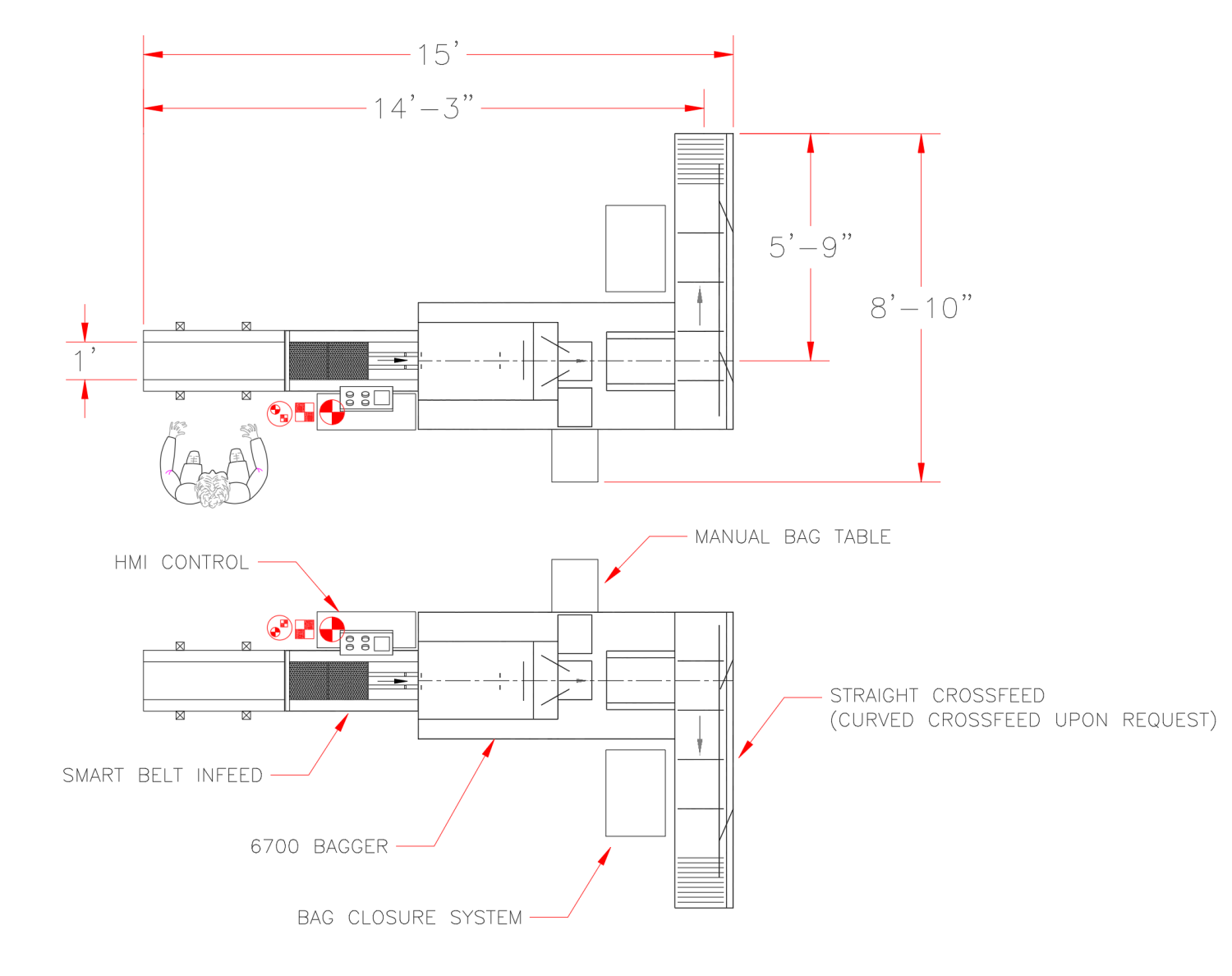

- Flexible layouts and bag closing options adapt to different production lines
Runs for
How it works
Controlled Product Infeed
Products enter through an indexing system that controls product movement into the bagging cycle. An empty bag sensor verifies bag availability before loading to help maintain accurate, consistent operation.
Precise Bag Loading
A three-directional bag scoop controls the loading motion to place stacked tortillas and flatbreads into the bag. The servo-based design provides precise, repeatable movement across a range of product sizes.
Recipe-Based Servo Control
An Allen-Bradley touchscreen HMI provides digital speed control and recipe-based servo setup, allowing operators to recall machine settings for different products and packaging requirements.
Specifications
| Specification | UBE3100-60 | UBE3100-90 |
|---|---|---|
| Throughput | 60 packs/min | 90 packs/min |
| Product length | 80 – 400 mm | 80 – 400 mm |
| Film width | to 450 mm | to 600 mm |
| Sealing head | Box motion | Box motion |
| Changeover | < 10 min | < 10 min |
| Connected load | 5.0 kW | 7.5 kW |
Specifications vary by product and application. Contact UBE to confirm product compatibility, bag requirements, configuration, and production speeds.
Gallery
Next step
Specify the 6700 Flatbread & Tortilla Bagger for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
