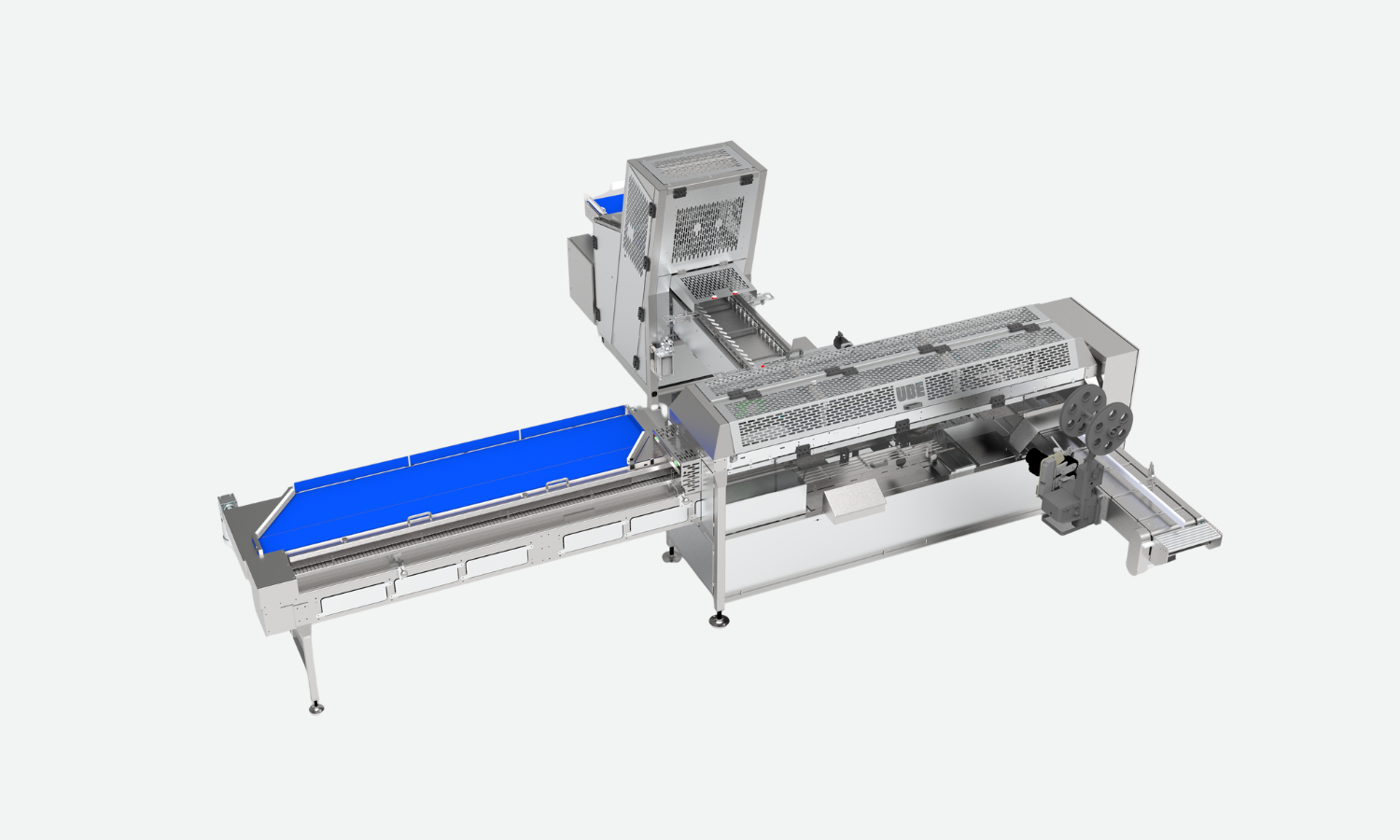

7700-C Combo Slicing and Packaging System
A versatile slicing and packaging system designed to run buns, pan bread, and hearth bread on a single production line. The UBE 7700-C combines multiple product infeed configurations with servo-driven transfer and bagging technology, giving bakeries the flexibility to package a wide range of products in one compact system.
Why it is specified
- Handles buns, pan bread, and hearth bread on a single system
- Multiple product infeed paths provide flexibility across product styles

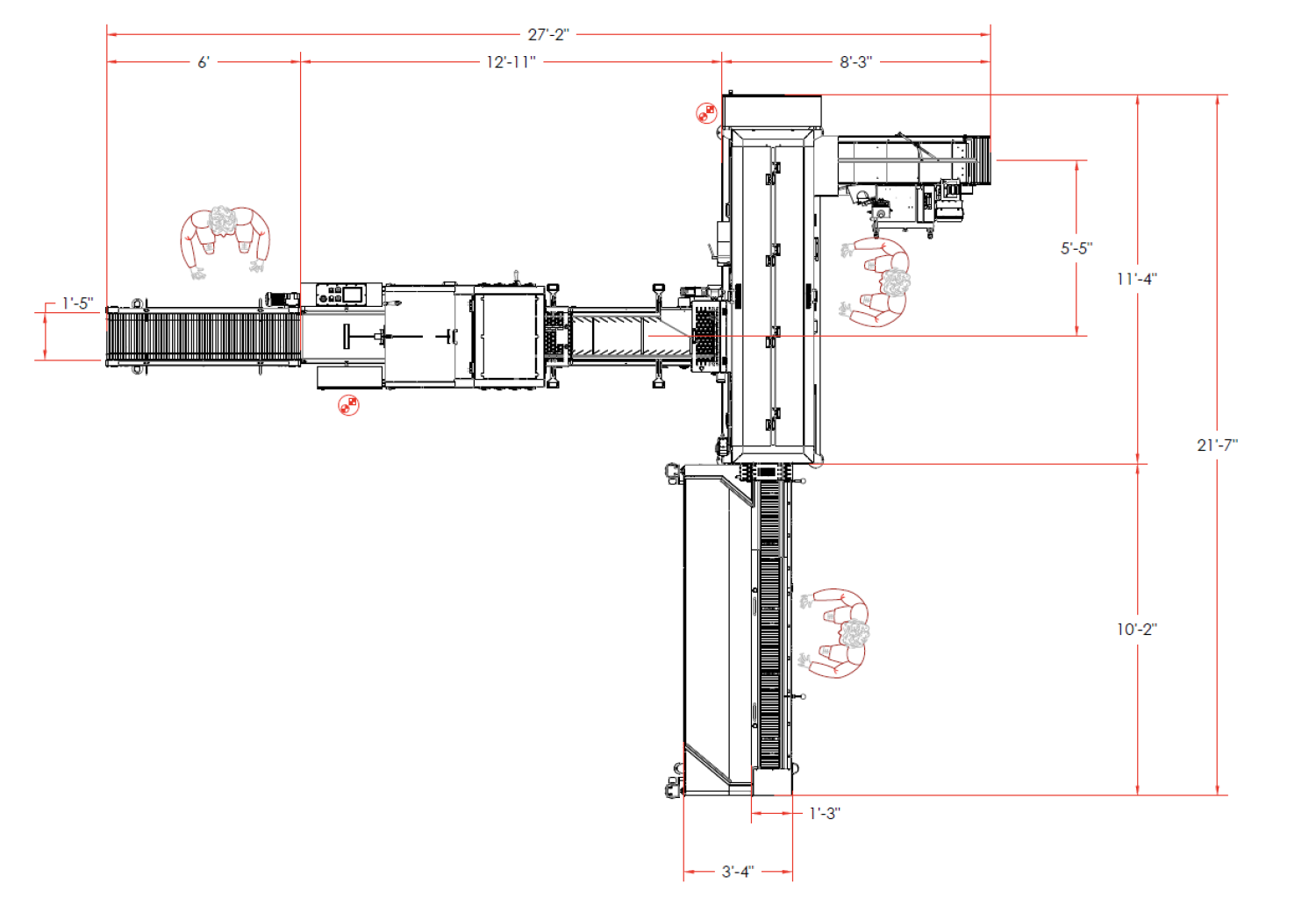

- Compact footprint simplifies integration into existing bakery layouts
- Servo-driven product handling provides precise, repeatable motion
- High-speed top transfer provides smooth, efficient bag loading
- Servo-driven crossfeed integrates with downstream bag closing equipment
- Allen-Bradley motion controls provide centralized machine operation
- Multiple slicer and hearth bread handling configurations available
Runs for
Specifications
| Machine Details | Standard Configuration |
|---|---|
| Electrical | 208/230/380/460 V, 3 Phase, 50/60 Hz |
| Air Requirements | 6 CFM at 90 PSI, dry filtered |
Specifications and production speeds are subject to change and may vary based on product characteristics, bag size, closures, toppings, and other application requirements. Contact UBE to confirm performance for your specific product.
How it works
Multiple Product Infeeds
The 7700-C provides dedicated product paths for different bakery products. Buns enter through a 7700-style rear infeed, while sliced bread can enter from the side through a Model 90-75 band slicer.
Flexible Slicing Configurations
The system can be configured for a variety of slicing applications, including the Model 90-75 for bread as well as single-band or hinge slicers for buns. Optional hearth bread handling components expand the system for round and batard loaves.
Servo-Controlled Bag Loading
A high-speed top transfer moves product into the bag while a servo-driven tucker table provides precise, repeatable control through the packaging cycle.
Integrated Packaging Discharge
After bagging, a servo-driven crossfeed conveyor transfers the packaged product toward downstream equipment and can be configured for integration with a Kwik Lok bag closing system.
Next step
Specify the 7700-C Combo Slicing and Packaging System for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
