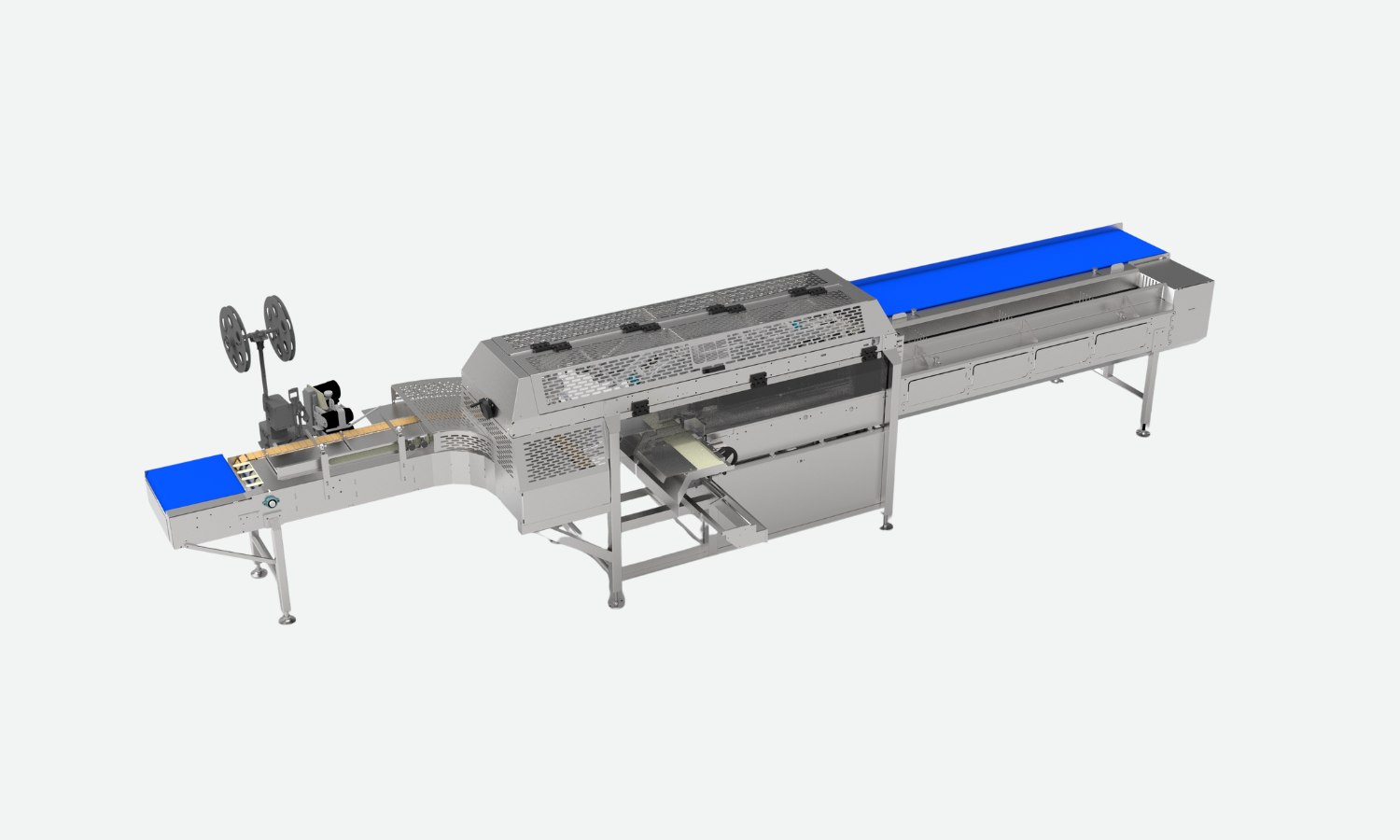

7700-R Rear Feed Servo Bagger

The UBE Model 7700-R is the latest generation of UBE's hand-loaded bakery packaging systems, succeeding the 1216H, 67-2A, and 67-2P machines built by UBE for many years. The 7700-R combines flexible operator loading with modern servo-controlled product handling, automatic bag changing, and high-speed bag transfer for reliable production and simplified changeovers.

Why it is specified

  • Hand-loaded packaging solution for buns, rolls, and bakery products
  • All-servo drive system provides smooth, precise product handling
  • Independent servo-controlled conveyors provide accurate synchronization
  • Automatic bag changing reduces interruptions during production
  • Recipe-based setup simplifies product changeovers
  • High-speed top transfer provides smooth, efficient bag loading
  • Flexible packing conveyor configurations adapt to different production layouts
  • Simplified servo drive system reduces mechanical maintenance requirements

Runs for

Specifications

Machine DetailsStandard Configuration
Electrical208/230/380/460 V, 3 Phase, 50/60 Hz
Air Requirements6 CFM at 90 PSI, dry filtered

Specifications and production speeds are subject to change and may vary based on product characteristics, bag size, closures, toppings, and other application requirements. Contact UBE to confirm performance for your specific product.

How it works

Hand-Loaded Product Infeed

Products are manually loaded into the rear-feed system, providing operators with a flexible packaging solution for buns, rolls, and other bakery products without requiring a fully automated upstream system.

Servo-Controlled Product Handling

Independent servo drives control the infeed and outfeed conveyors for precise synchronization through the packaging cycle. The servo drive system replaces traditional cams, clutches, and hardened shafts for smoother operation and reduced mechanical maintenance.

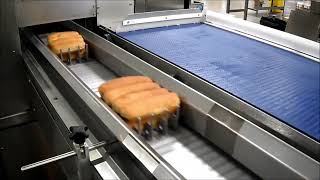

High-Speed Bag Loading

A high-speed 91AL-style top transfer system moves product smoothly into the bag. Servo-controlled motion provides consistent, repeatable handling throughout the loading cycle.

Next step

Specify the 7700-R Rear Feed Servo Bagger for your line

Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.

Request a quote

An application engineer replies within one business day.
