Foundry · Slicing & Packaging

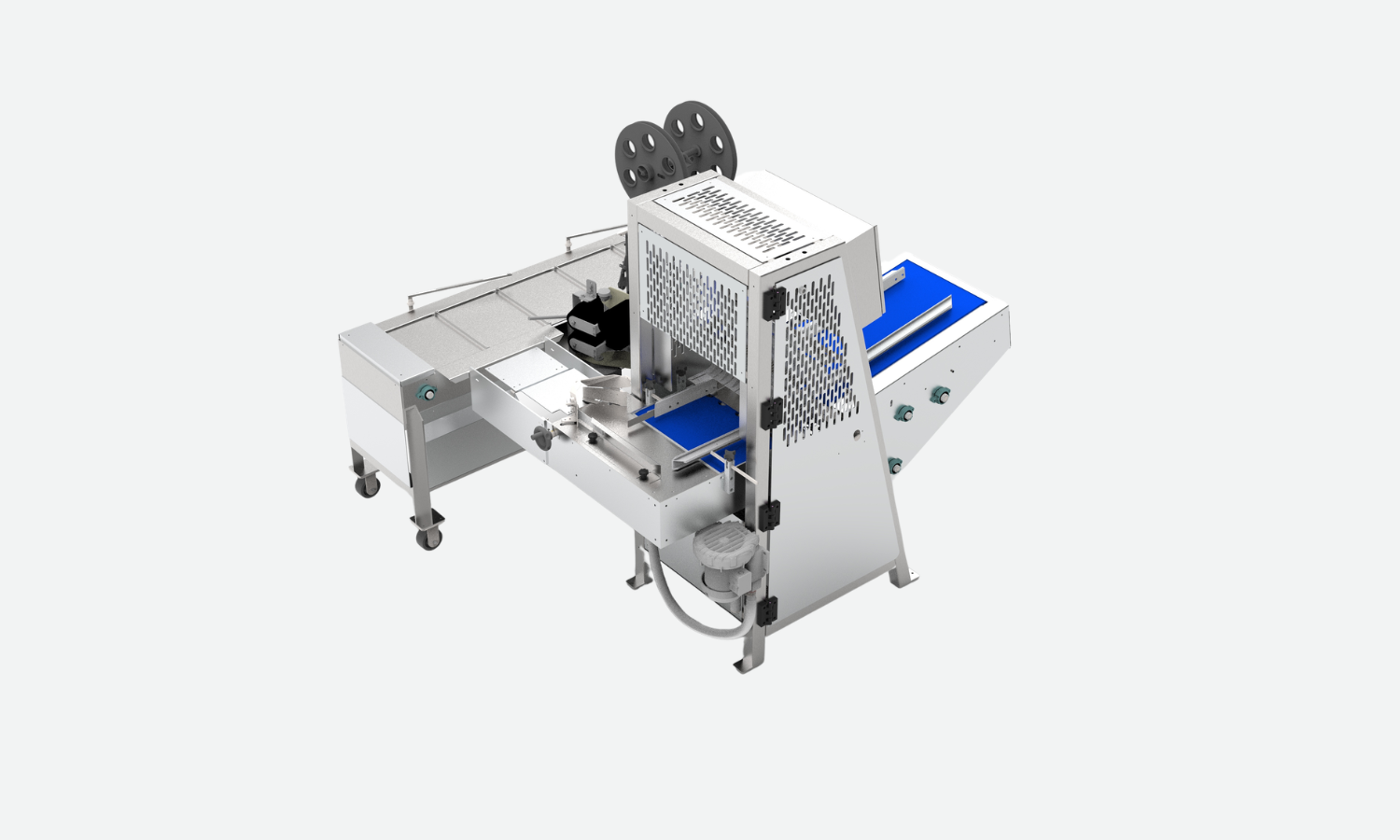

Model 10 Bread Slicer
A proven bread slicing system with integrated hand packaging for consistent, reliable production. The UBE Model 10 combines precision band slicing with fixed blade guides and a convenient hand bagging station for bakeries producing consistent slice specifications.
Why it is specified
- Slices and presents bread for hand packaging in one integrated system
- Production speeds up to 30 loaves per minute
- Fixed blade guides provide consistent customer-specified slice thickness
- Precision ceramic blade guides provide smooth, accurate slicing
- Grip-top infeed conveyor provides positive loaf control through the blades
- Integrated hand bagging station simplifies operator workflow
- Allen-Bradley touchscreen provides simple, intuitive machine control
- Automatic broken blade detection enhances operator and machine safety
Runs for
How it works
Fixed Slice Thickness
Fixed blade guides are manufactured to the customer's specified slice thickness, providing a simple and repeatable slicing configuration for products with consistent slice requirements.
Controlled Product Discharge
After slicing, the loaf transfers onto a belt-driven outfeed conveyor that delivers the sliced product directly to the operator's packaging station.
Integrated Hand Bagger
An integrated hand bagging station with a single-position bag table allows the operator to package sliced loaves directly from the machine, creating an efficient slicing and packaging workflow without a fully automatic bagger.
Specifications
| Specification | UBE2140-2 | UBE2140-4 |
|---|---|---|
| Lanes | 2 | 4 |
| Throughput | 60 packs/min | 110 packs/min |
| Pack counts | 4, 6, 8, 12 | 4, 6, 8, 12 |
| Collation check | Per pack | Per pack |
| Connected load | 4.0 kW | 6.0 kW |
Specifications vary by product and application. Slice thickness is configured to customer specifications. Contact UBE to confirm product compatibility, configuration, and production speeds.
Gallery
Next step
Specify the Model 10 Bread Slicer for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
