Singulators

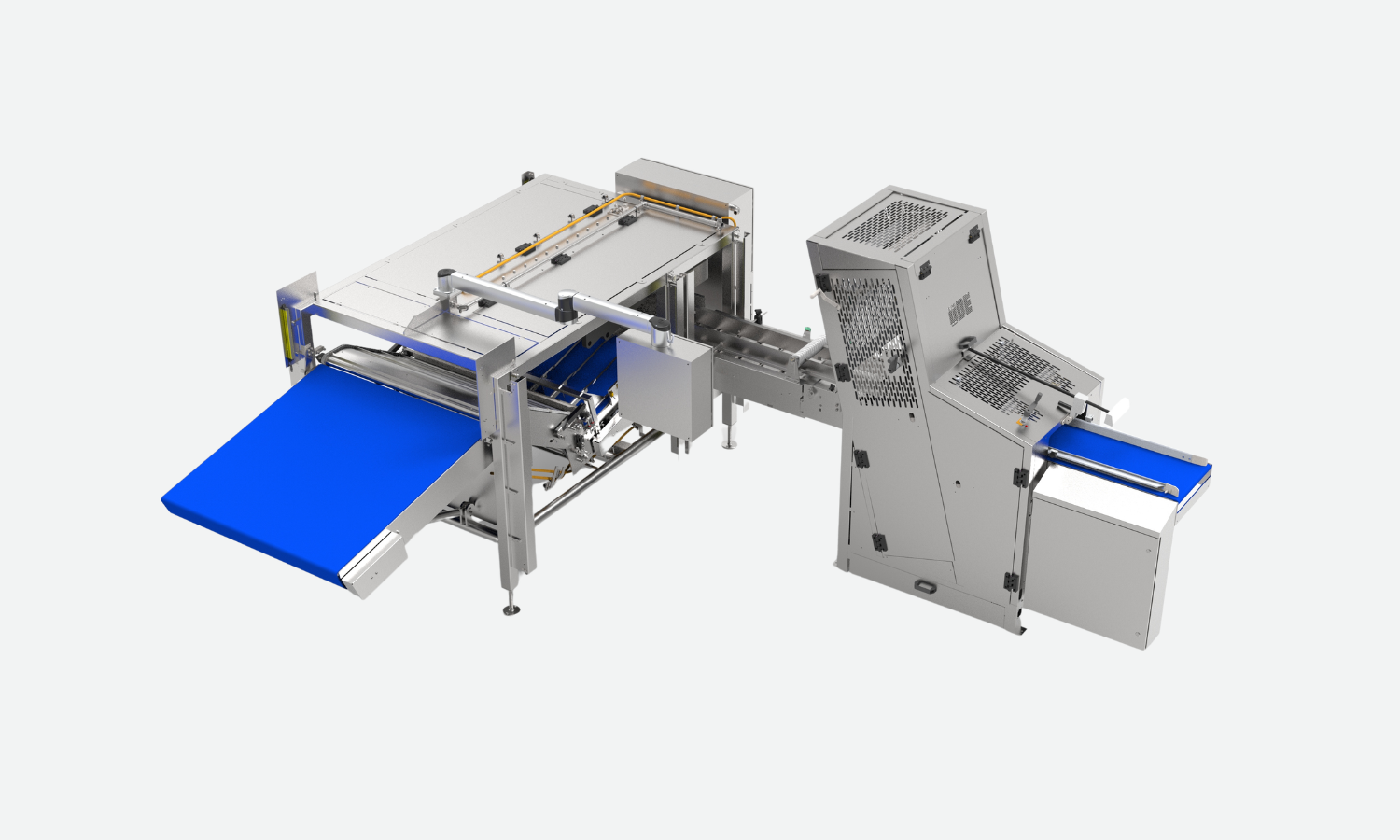

6500 Bread Slice Singulator
An automated bread slice singulation system designed to convert whole sliced loaves into a controlled horizontal flow of individual slices. The UBE 6500 integrates with upstream slicing equipment and distributes product across multiple lanes for continuous downstream processing and packaging applications.
Why it is specified
- Converts whole sliced loaves into a controlled flow of individual bread slices
- Multi-lane discharge configurations support high-volume production
- Typical production speeds of 40 to 50 pieces per lane per minute
- Reciprocating transfer system distributes product across multiple lanes
- Washdown construction supports sanitation and food safety requirements
- Stainless steel construction provides durability in demanding bakery environments
- Allen-Bradley servo controls provide precise, repeatable product handling
- Available in 6, 8, 10, or custom multi-lane configurations
Runs for
How it works
Loaf Denesting
Whole sliced loaves enter the 6500 where the individual bread slices are separated and converted into a controlled horizontal product flow for downstream processing.
Controlled Slice Flow
The singulation process maintains an organized flow of individual slices as product moves through the system, preparing each slice for controlled transfer into the required downstream lanes.
Multi-Lane Distribution
A reciprocating transfer conveyor at the discharge distributes individual bread slices across multiple lanes. Standard configurations can be designed with 6, 8, or 10 lanes, with custom multi-lane arrangements available for specific applications.
Integrated Line Control
Allen-Bradley Compact GuardLogix controls, Kinetix servo drives, and a PanelView HMI provide centralized control of the singulation and transfer process for precise, repeatable operation.
Specifications
| Specification | UBE3160 |
|---|---|
| Throughput | 35 multipacks/min |
| Pack layouts | 2×2, 2×3, 3×3, 2×4 |
| Product length | 80 – 250 mm |
| Film width | to 600 mm |
| Connected load | 8.0 kW |
Production speed is product dependent. Typical production speed is approximately 40 to 75 pieces per lane per minute. Contact UBE to determine lane configuration, system layout, and application-specific production speeds.

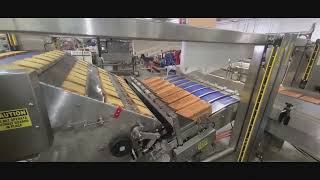

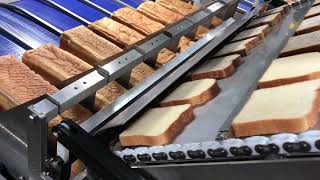

Gallery
Next step
Specify the 6500 Bread Slice Singulator for your line
Tell us the product, the rate you need and what the machine has to fit between. We come back with a configuration, a footprint and a lead time.
